2 Wire Deutsch style Amphenol AT Parts & Kits

New!

SPECIFICATIONS

Amps: 13

AWG: 16-20

Color: Grey / Green

Contact Size: 16

Contact type: Pin & Socket

Dielectric Value: 1500V minimum

Housing Material: Thermoplastic

Insulation Resistance: 1000 megohms at 25?C

IP Rating: IP67

Mating Cycle Durability: >100

Positions: 2-Way

Seal Material: Silicone Rubber

Temperature Range: -55?C TO +125?C

Wire Range: 16-20 AWG

Item #	Description/Size
2990F	2990F - 2 Wire Deutsch style Amphenol AT Connector Project Kit
3001F	Deutsch style Amphenol AT, Socket/Receptacle Side, 2 Wire Housing, 10 Pcs
3021F	Deutsch style Amphenol AT, Socket/Receptacle Side, 2 Wire Wedge, 10 Pcs
3020F	Deutsch style Amphenol AT, Plug Side, 2 Wire Housing, 10 Pcs
3022F	Deutsch style Amphenol AT, Plug Side, 2 Wire Wedge, 10 Pcs
3031F	Deutsch style Amphenol AT, Stamped Pin/Male Terminals, 25 Pcs
3031C	Deutsch style Amphenol AT, Stamped Pin/Male terminals, 100 Pcs
3032F	Deutsch style Amphenol AT, Stamped Socket/Female terminals, 25 Pcs
3032C	Deutsch style Amphenol AT, Stamped Socket/Female Terminals, 100 Pcs

Amphenol AT connectors are compatible with Deutsch DT connectors. These are a great way to create connectors that are durable and sealed.

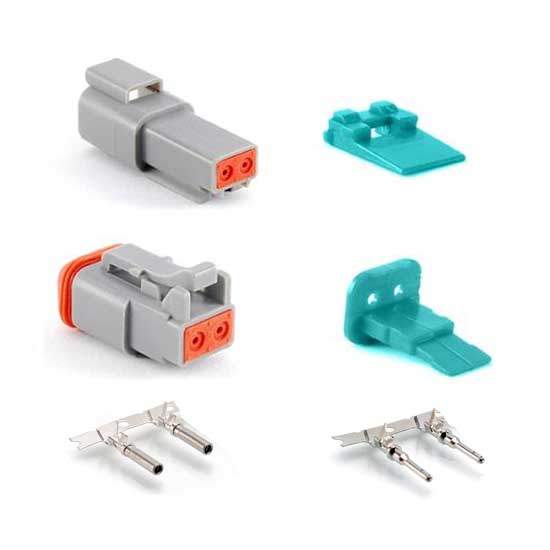

Project kits include all parts needed to make both ends of one 2 wire connector, everything in main photo above - Plugs, receptacle, wedges, and contacts. For use with 16-20 gauge wires. Use open barrel crimping tool like 5000F to crimp contacts.
