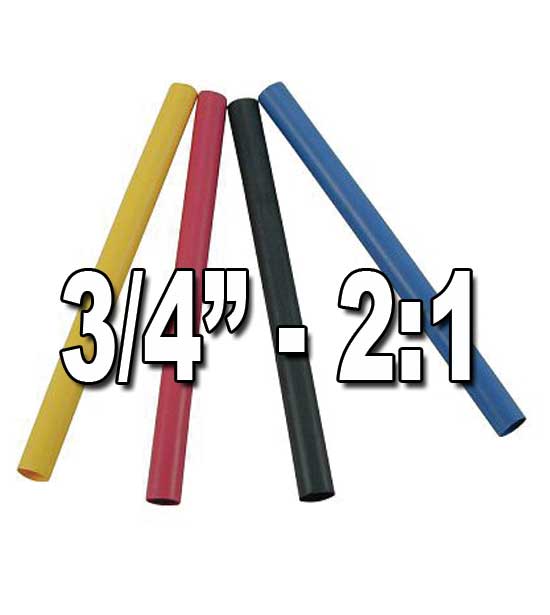

3/4" 2:1 Single/Thin Wall Heat Shrink Polyolefin Tubing

3/4” (.750”) 19.05mm 2 to 1 Single/Thin-Wall Polyolefin Heat Shrink Tubing

Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Class 1, Class 2 (Clear), Class 3.
Meets requirements of AMS-3636 & AMS-3637.
RoHS Compliant.
UL Recognized: File E-39100.
CSA Certified: CSA LR-38227.
ABS Approved.
Continuous Operating Temperature: -55C (-67F) to 135C (275F) & up to 300C (572F) for short durations.
Shrink Temperature: 121C (250F).
Shrink Ratio: 2 to 1 (shrinks to 1/2 its original diameter).
Voltage Rating: 600Volts Maximum. Cross-Linked Polyolefin Heat Shrink Tubing. Single/Thin-Wall.
Flame-Retardant.
Flammability Rating: UL224 / VW-1.
NOTE: Clear tubing is NOT flame retardant/rated or UL listed.
Note: 4' sticks may be rolled or folded for shipping

Item #	Description/Size
4008H	3/4" 2:1 Black Heat Shrink Tubing, 4" pieces, qty 3
4028H	3/4" 2:1 Red Heat Shrink Tubing, 4" pieces, qty 3
4008-0F	3/4" 2:1 Black Heat Shrink Tubing, 6" pieces, qty 8
4008-1F	3/4" 2:1 Clear Heat Shrink Tubing, 6" pieces, qty 8
4008-2F	3/4" 2:1 Red Heat Shrink Tubing, 6" pieces, qty 8
4008-5F	3/4" 2:1 Green Heat Shrink Tubing, 6" pieces, qty 8
4008-6F	3/4" 2:1 Blue Heat Shrink Tubing, 6" pieces, qty 8
4008-7F	3/4" 2:1 Yellow Heat Shrink Tubing, 6" pieces, qty 8
4008-9F	3/4" 2:1 White Heat Shrink Tubing, 6" pieces, qty 8
J-8508	3/4" 2:1 Black Heat Shrink Tubing, 4 ft stick, qty 1
J-8518	3/4" 2:1 Clear Heat Shrink Tubing, 4 ft stick, qty 1
J-8528	3/4" 2:1 Red Heat Shrink Tubing, 4 ft stick, qty 1
J-8538	3/4" 2:1 Yellow Heat Shrink Tubing, 4 ft stick, qty 1
J-8548	3/4" 2:1 Blue Heat Shrink Tubing, 4 ft stick, qty 1
J-8558	3/4" 2:1 White Heat Shrink Tubing, 4 ft stick, qty 1
J-8588	3/4" 2:1 Green Heat Shrink Tubing, 4 ft stick, qty 1
J-8808	3/4" 2:1 Black Heat Shrink Tubing, 24ft Spool
J-8818	3/4" 2:1 Clear Heat Shrink Tubing, 24ft Spool
J-8828	3/4" 2:1 Red Heat Shrink Tubing, 24ft Spool
J-8838	3/4" 2:1 Yellow Heat Shrink Tubing, 24ft Spool
J-8848	3/4" 2:1 Blue Heat Shrink Tubing, 24ft Spool
J-8858	3/4" 2:1 White Heat Shrink Tubing, 24ft Spool
J-8888	3/4" 2:1 Green Heat Shrink Tubing, 24ft Spool
4061F	3/4" 2:1 Heat Shrink Tubing, 4" pieces, Assorted Colors, Qty 5
4008S-5DOT	3/4" 2:1 Green Heat Shrink Tubing, 100ft Spool
4008S-1DOT	3/4" 2:1 Clear Heat Shrink Tubing, 100ft Spool
4008S-2DOT	3/4" 2:1 Red Heat Shrink Tubing, 100ft Spool
4008S-7DOT	3/4" 2:1 Yellow Heat Shrink Tubing, 100ft Spool
4008S-6DOT	3/4" 2:1 Blue Heat Shrink Tubing, 100ft Spool
4008S-0DOT	3/4" 2:1 Black Heat Shrink Tubing, 100ft Spool
4008S-9DOT	3/4" 2:1 White Heat Shrink Tubing, 100ft Spool

Manufactured by Dunbar, world respected leader in heat shrink manufacturing. 1635F Spec.

JT&T’s 2 to 1 Single/Thin Wall Cross-Linked Polyolefin Heat Shrink Tubing is irradiated, flexible & intended for general purpose applications requiring recognition by military & industrial specifications. UL recognized, CSA certified, RoHS compliant & ABS approved. Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Classes 1, 2 (Clear), 3.

It is single-wall, flame-retardant, mechanically strong & will not melt or split when shrunk over irregularly-shaped objects. Applications include insulation, jacketing wire bundles, mechanical protection, physical/electrical protection of components, strain relief, solder insulation & lightweight harnessing where superior abrasion resistance is a plus. Also, used to identify & color-code electrical connections & wire bundles.

Temperature rating for continuous operation from -55°C (-67°F) to 135°C (275°F) & up to 300°C (572°F) for short durations. Shrink Ratio is 2 to 1 (shrinks to 1/2 its original diameter). Shrink Temperature is 121°C (250°F). NOTE: Clear tubing is NOT flame retardant or UL listed.
