In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal

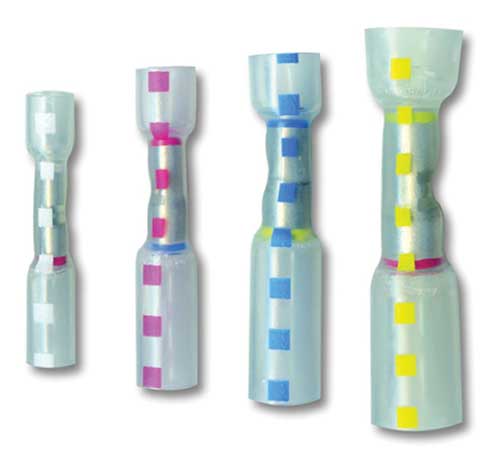

In-Line Multiple Wire Butt Connectors Heat Shrink Insulated - Crimp Seal

4x Adhesive on inside melts down to protect wires from corrosion

Connects two wires of smallest listed AWG to one of the same gauge on the opposite end. For instance on the Blue Dash (2271) version, you can put two 14-16 GA wires on the 'yellow' end and one 14-16 GA wire on the 'blue' end.

Premium alternative to use in place of quick taps or scotch loks

Color stripes on connector indicates best crimp die to use

Color dash indicates wire size that can be used

Item #	Description/Size
2269J	24-22 to 20-18AWG, White dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 5
2269F	24-22 to 20-18AWG, White dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 10
2269L	24-22 to 20-18AWG, White dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 50
2270J	20-18 to 16-14AWG, Red dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 5
2270F	20-18 to 16-14AWG, Red dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 10
2270L	20-18 to 16-14AWG, Red dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 50
2271J	16-14 to 12-10AWG, Blue dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 5
2271F	16-14 to 12-10AWG, Blue dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 10
2271L	16-14 to 12-10AWG, Blue dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 50
2272J	12-10 to 8AWG, Yellow dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 5
2272F	12-10 to 8AWG, Yellow dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 10
2272L	12-10 to 8AWG, Yellow dash, In-line, Multi Wire Butt Connectors, Heat Shrink, Crimp Seal, Qty 50

Made in the USA with 3M heat shrink tubing.The best way to connect multiple wires. This terminal features 4x the standard adhesive - this allows the sealant to get down between the wires and prevent any contaminants from entering.

⚠ WARNING: Cancer and reproductive harm - www.p65warnings.ca.gov

See Additional Info tab for demonstration video.
