6 Wire Deutsch style Amphenol AT Parts & Kits

New!

SPECIFICATIONS

Amps: 13

AWG: 16-20

Color: Grey / Green

Contact Size: 16

Contact type: Pin & Socket

Dielectric Value: 1500V minimum

Housing Material: Thermoplastic

Insulation Resistance: 1000 megohms at 25?C

IP Rating: IP67

Mating Cycle Durability: >100

Positions: 2-Way

Seal Material: Silicone Rubber

Temperature Range: -55?C TO +125?C

Wire Range: 16-20 AWG

Item #	Description/Size
2993F	2993F - 6 Wire Deutsch style Amphenol AT Connector Project Kit
3031F	Amphenol AT Deutsch Compatible, Stamped Pins, Qty 25
3031C	Amphenol AT Deutsch Compatible, Stamped Pins, Qty 100
3032F	Amphenol AT Deutsch Compatible, Stamped Sockets, Qty 25
3032C	Amphenol AT Deutsch Compatible, Stamped Sockets, Qty 100
3007F	Amphenol AT Deutsch Compatible, Plug Side, 6 Pin Housing, Qty 5
3027F	Amphenol AT Deutsch Compatible, Plug Side, 6 Pin Wedge, Qty 5
3008F	Amphenol AT Deutsch Compatible, Socket Side, 6 Socket Housing, Qty 5
3028F	Amphenol AT Deutsch Compatible, Socket Side, 6 Socket Wedge, Qty 5

Amphenol AT connectors are compatible with Deutsch DT connectors. These are a great way to create connectors that are durable and sealed.

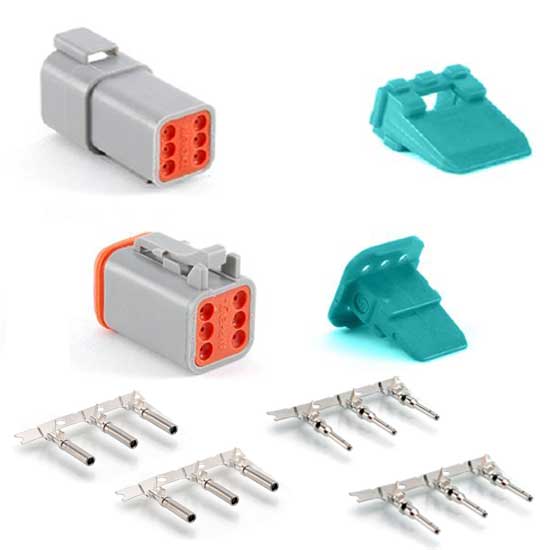

Project kits include all parts needed to make both ends of one 6 wire connector, everything in main photo above - Plugs, receptacle, wedges, and contacts. For use with 16-20 gauge wires. Use open barrel crimping tool like 5000F to crimp contacts.
