• 3 Wire Deutsch style Amphenol AT Parts & Kits - DT3
  • 3 Wire Deutsch style Amphenol AT Parts & Kits - DT3
New!

SPECIFICATIONS

  • Amps: 13
  • AWG: 16-20
  • Color: Grey / Green
  • Contact Size: 16
  • Contact type: Pin & Socket
  • Dielectric Value: 1500V minimum
  • Housing Material: Thermoplastic
  • Insulation Resistance: 1000 megohms at 25?C
  • IP Rating: IP67
  • Mating Cycle Durability: >100
  • Positions: 2-Way
  • Seal Material: Silicone Rubber
  • Temperature Range: -55?C TO +125?C
  • Wire Range: 16-20 AWG

  • Item # Description/Size
    2991F
    2991F - 3 Wire Deutsch style Amphenol AT Connector Project Kit
    3031F
    Amphenol AT Deutsch Compatible, Stamped Pins, Qty 25
    3031C
    Amphenol AT Deutsch Compatible, Stamped Pins, Qty 100
    3032F
    Amphenol AT Deutsch Compatible, Stamped Sockets, Qty 25
    3032C
    Amphenol AT Deutsch Compatible, Stamped Sockets, Qty 100
    3003F
    Amphenol AT Deutsch Compatible, Plug Side, 3 Pin Housing, Qty 10
    3023F
    Amphenol AT Deutsch Compatible, Plug Side, 3 Pin Wedge, Qty 10
    3004F
    Amphenol AT Deutsch Compatible, Socket Side, 3 Socket Housing, Qty 10
    3024F
    Amphenol AT Deutsch Compatible, Socket Side, 3 Socket Wedge, Qty 10

    Amphenol AT connectors are compatible with Deutsch DT connectors. These are a great way to create connectors that are durable and sealed.

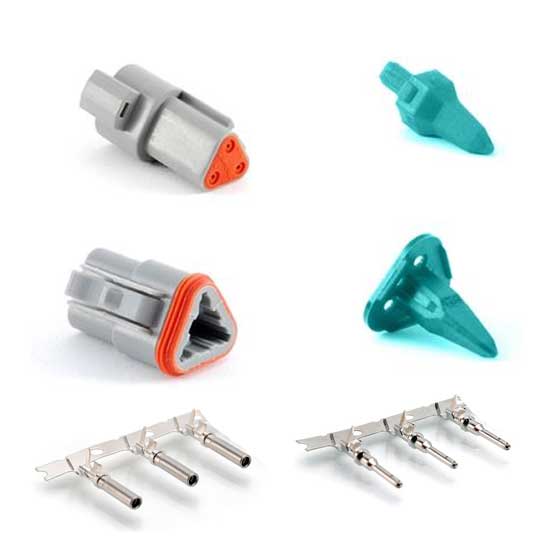

    Project kits include all parts needed to make both ends of one 3 wire connector, everything in main photo above - Plugs, receptacle, wedges, and contacts. For use with 16-20 gauge wires. Use open barrel crimping tool like 5000F to crimp contacts.
