Item # Description/Size
4307NF

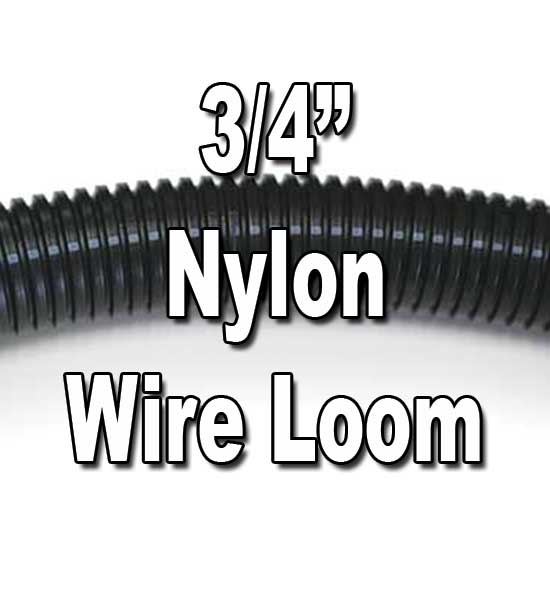

3/4" Diameter NYLON Split Wire Loom Flex-Guard Convoluted Tubing, 25 FT
4307NC
3/4" Diameter NYLON Split Wire Loom Flex-Guard Convoluted Tubing, 100 FT
4307NDOT
3/4" Diameter NYLON Split Wire Loom Flex-Guard Convoluted Tubing, 600 FT

Split Loom although lightweight, is a very bulky item that is very expensive to ship. We're sorry, but rolls of 100ft. incur a $5 shipping surcharge and 600ft rolls a $10 surcharge per item. This will be listed as a 'Handling Fee' in your order. Not available for AK or HI customers unless shipped collect.

JT&T’s Nylon Flex-Guard Convoluted Tubing (Split Loom) is designed to provide a flexible, crush-resistant protection for wiring assemblies. The tubing is a corrugated tube used to provide protection to a wire harness or any other product that may be subject to abnormal conditions, such as continuous abrasion & vibration wear, puncturing, water, snow, ice, salt & UV rays. The covultued tubing is manufactured from a nylon 6 co-polymer resin. The convoluted surface enhances the appearance of your product by providing a uniform tailored finish. The split seam feature allows wires to be inserted easily, eliminating the costly time needed to apply tape, braid or loom. Since the seam is not permanently sealed, the costs of repair or service are also reduced. Temperature rating from -40°C (-40°F) to 149°C (300°F).

Key Points:

      FMVSS 302 Flame Resistance Rating

      • Meets requirements of ISO 1183-A density test.

      • ISO/TS 16949 & ISO 9001 Compliant.

      • RoHS Compliant.

      • Continuous Operating Temperature: -40°C (-40°F) to 149°C (300°F).

      • Available in non-split by special order.

      • 1/4” to 1-1/2” sizes available - some by special order.
